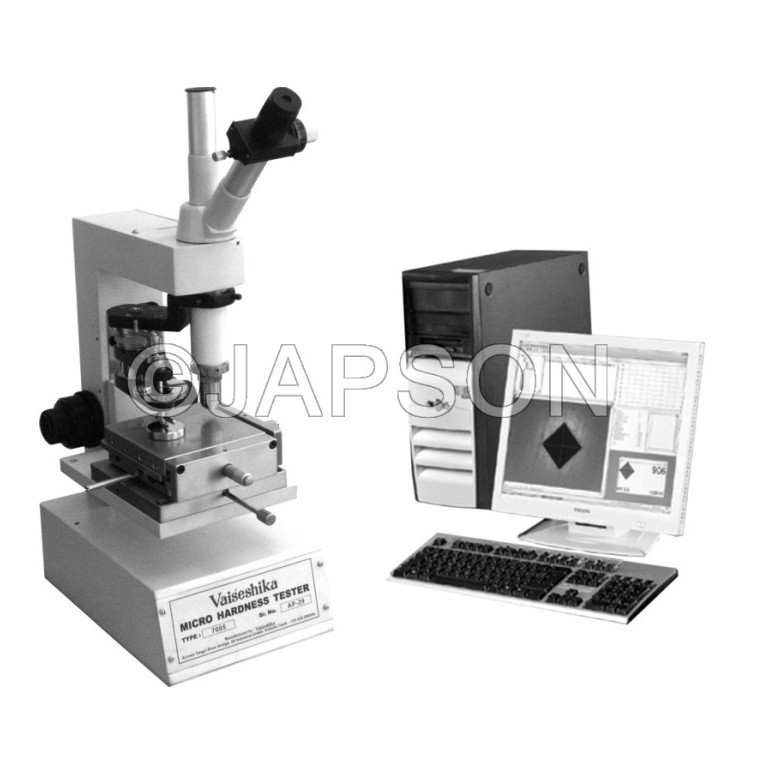

Description The instrument comprises of a microscope along with a filar micrometer eye piece of 10X and objective of 40X. The instrument is mounted on a stand having loading and unloading mechanism attached to the microscope. A standard weight of 10gms to 200gms is loaded on the indentor assembly. An indentation, with the help of a diamond indentor, is caused on the material of the surface (whose hardness is to be measured). The system employs a high precision rotating specimen table (fitted with micro meter screw gauges) to turn the sample under the microscope along X and Y axis.
Principle The principle of operation of the instrument is based on pressing a diamond indentor into the specimen under test with a certain load in gms and consequently measuring linear value (d) of the diagonal of the indentor print obtained. The hardness number (H) is calculated by dividing the load (P in Kg) by the surface area (S in sq mm) of the indentor print and is expressed as H = P/S or 1.854 P/d¹.
Features
  1. First ever Indian instrument (Import Substitute) designed in collaboration with the Central Scientific Instruments Organisation, Chandigarh
  2. Low cost Opto-Mechanical instrument
  3. Micro hardness measurement in vickers
  4. Easy to operate
  5. Repeatability in results
Specification
Micro Hardness Measurement Range: 20 to 1500 vickers at different weights.

Viewing System:
Objective: 40X
Micrometer Eye piece: 10X
Total Magnification: 400X
Working Distance (approx.): 1mm

Illumination System: Halogen Lamp 6V, 20W
Condenser: Condenser, Iris Diaphragm, Power Supply through Transformer from 230 volts, AC, 50Hz
Indentation System:
Loading/Unloading Mechanism: Manual
Weights: 10 to 200gm
Indentor: Diamond Pyramid
Specimen Table:
Angle of turn: 0 to 180°
Longitudinal travel: 0 to 10mm
Crosswise travel: 0 to 10mm
Micrometer feedscale: 0.01mm/div
Total weight of the system: 20Kgs. (approx.)
Dimensions: 340x290x380mm (approximately)
Accuracy: ±20 vickers (for 100 to 1500 vickers)
Accuracy: ±10 vickers (for less than 100 vickers)
Applications
  1. The system would be used for measuring micro hardness in vickers of metals/alloys, various phases/ micro-constituents present in metal matrix, thin wires & sheets, diffusion coatings and case depth of carburised/nitrided components etc.
  2. Micro-hardness of ceramic materials like human tooth and jaw for Anthropological studies.

Model Catalog No.
Micro Hardness Tester 7005
